Aeroblade-5

Aeroblade-5 Single Color

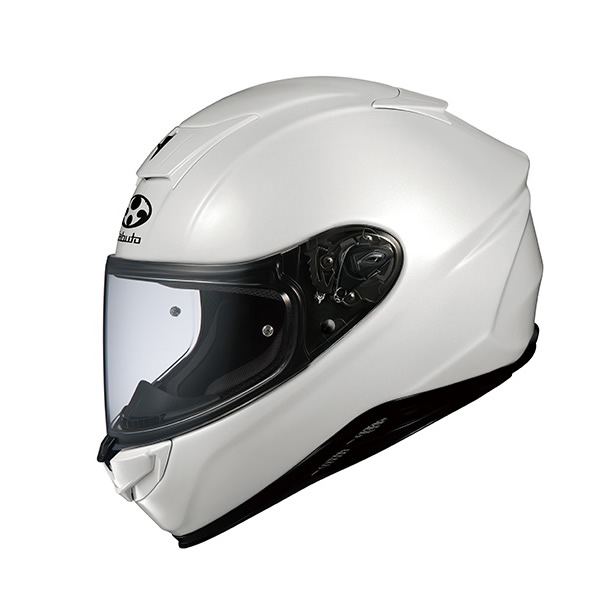

Pearl White

Black Metalic

Flat Black

Shiny Red

Flat Blue

Light weight full face helmet with OGK's signiture Top and Chin Air Ventilation
Size : XS (54-55cm) / S (55-56cm) / M (57-58cm) / L (59-60cm) / XL (60-61cm) / XXL (62-63cm)

Parl White

$ 249 USD

Black Metalic

$ 249 USD

Flat Black

$ 249 USD

Shiny Red

$ 249 USD

Flat Blue

$ 249 USD

Pearl White (Side VIEW)

Aeroblade-5 SMART

Flat Black Red

White Black

Flat Black White

Flat Black Blue

Light weight full face helmet with OGK's signiture Top and Chin Air Ventilation
Size : XS (54-55cm) / S (55-56cm) / M (57-58cm) / L (59-60cm) / XL (60-61cm) / XXL (62-63cm)

Flat Black Red

$ 277 USD

White Black

$ 277 USD

Flat Black White

$ 277 USD

Flat Black Blue

$ 277 USD

( Side View )	( Rwar View )	( Upper View )

Aeroblade-5 VISION

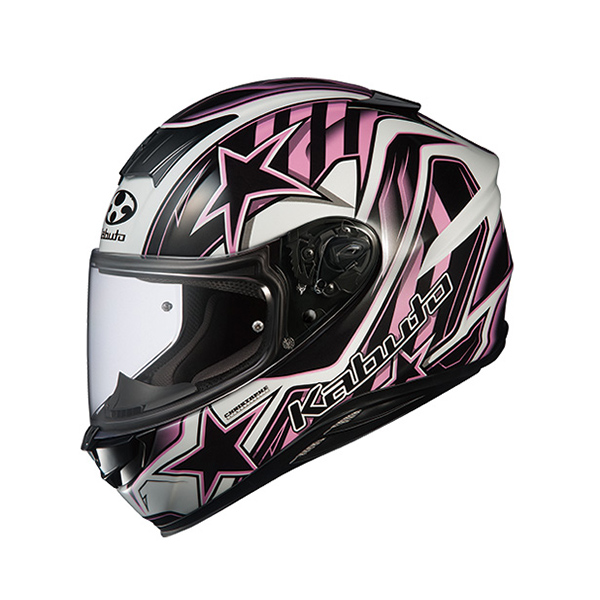

Black Pink

White Blue Red

Flat Black Red

Light weight full face helmet with OGK's signiture Top and Chin Air Ventilation
Size : XS (54-55cm) / S (55-56cm) / M (57-58cm) / L (59-60cm) / XL (60-61cm) / XXL (62-63cm)

Black Pink

$ 277 USD

White Blue Red

$ 277 USD

Flat Black Red

$ 277 USD

( Side View )	( Rwar View )	( Upper View )

( Side View )

( Rwar View )

( Upper View )

Aeroblade-5 RUSH

Flat Black Silver

Black Yellow

Light weight full face helmet with OGK's signiture Top and Chin Air Ventilation
Size : XS (54-55cm) / S (55-56cm) / M (57-58cm) / L (59-60cm) / XL (60-61cm) / XXL (62-63cm)

Flat Black Silver

$ 277 USD

Black Yellow

$ 277 USD

( Side View )

( Rwar View )

( Upper View )

Aeroblade-5 LB

Flat Black-1

Light weight full face helmet with OGK's signiture Top and Chin Air Ventilation
Size : XS (54-55cm) / S (55-56cm) / M (57-58cm) / L (59-60cm)

Flat Black-1

$ 277 USD

( Side View )

( Rwar View )

( Upper View )

Aeroblade-5 TAMON

Black

Light weight full face helmet with OGK's signiture Top and Chin Air Ventilation
Size : XS (54-55cm) / S (55-56cm) / M (57-58cm) / L (59-60cm)

Black

$ 277 USD

( Side View )

( Rwar View )

( Upper View )

Size Chart

XS	S	M	L	XL	XXL
54-55cm	55-56cm	57-58cm	59-60cm	60-61cm	62-63cm

Main Specifications

Includes : Wind Shutter No.3
A.C.T.-EVO (Advanced Composite Technology) succeeded in high anti-penetration and im pact absorption.)
Better seal and quietness is a chieved with DAF ratchet of double ax is structure, and DAF-1 shield in 3D shape.
Big shield lever w ith center-lock system enabled easier opening and closing of the shield w ith the gloves.
4-shell size w ith 6 sizes range realizes fine fitting, light w eight and com pactness.
Trim s at the bottom is designed for easy to put on / take off.
Optionally available with wide type 100% MAX VISION DAF Pinlock® OriginalInsertLens to help anti-fogging.
Fully detachable and washable innerpads, cheek pads and chinstrap covers, with COOLMAX® comfort material.
Micro Ratchet Buckle enables securely and finely adjustm ent.
Cheek pads w ith slits for glasses tem ples enable easy eyew ear putting on / taking off.

Technology

Supreme Lightness that lowers the load on the rider

Together with the advanced composite technology that succeeded in high anti-penetration and impact absorption, Kabuto adopted FEM (Finite Element Method) structural analysis to optimize the strength on each part. Level of safety feature enabling to pass JIS requirements with wide margin, and the supreme lightness that lowers the load on the rider's neck, will ease the strain on riders in any situation.

Leading-Edge Aero-form

Wake Stabilizer (PAT.4311691) , the proprietary aero devise Kabuto developed with CFD (3D Computational Fluid Dynamics) , and frontal projected area that is slimmed down to its limit, reduce the air resistance both at front and on sides in facing forward as well as turning back in,confirming rear view. This will reduce the stress on riders in long-distance touring and etc.

Newely Designed Shield System Achieved Silence

Better seal and quietness is achieved with : DAF ratchet of double axis structure; DAF-1 shield in 3D shape which has superior aerodynamics character and quick exchange; and new type trim rubbers.

Light Weight and Compact Design

4-shell size with 6 sizes range realizes fine fitting, light weight and Compactness.

Fresh Air Control

Newly designed big air inlet that is to route air inside the shell prevents fogging inside the shield and the glasses, also eases breathing.

DAF Pinlock ® Original Insert Lens

Pins for Pinlock ® Original Insert Lens prepared for Wide type 100& MAX VISION Pinlock® Original Insert Lens that helps anti-fogging by keeping the temperature inside and outside of the helmet.

Wake Stabilizer (PAT. No.4311691)

Kabuto's technology: Controls the air around the helmet and decreases the pressure to the rider.

Slim Form

Slim silhouette and frontal projected area that is slimmed down to its limit, which reduces air resistance.

Smooth Attach / Detach

Trims at the bottom is designed for easy to put on / take off.

Opening Space Around Ears

Opening space around ears for comfort

Detachable Ear Cap

The detachable ear cap is equipped as standard, with which space around ears can be adjusted.

Slit for glasses

Cheek pads with slits for glasses temples enable easy eye wear putting on/taking off. *vary among individuals due to glasses and face shapes.

Micro Ratchet Buckle

Kabuto original micro ratchet buckle. Multiple teeth engagements and release lever pivot system makes it possible to adjust the buckle securely and finely, maintaining good safety.
